316 Stainless Steel Sheet – Marine-Grade Corrosion Resistance for Demanding Projects

When your application battles chlorides, salt spray, or aggressive chemicals, 316 Stainless Steel Sheet is the premium upgrade you can’t afford to skip. Compared with the widely used 304 grade, 316 contains 2–3 % molybdenum, a strategic alloying addition that shuts down pitting and crevice corrosion in marine atmospheres and acidic brines. The result is a longer service life, lower maintenance budgets, and compliance with stringent FDA, USP, and offshore specifications—all in one versatile, fully austenitic material. From yacht decks and coastal cladding to pharmaceutical autoclaves and food-processing lines, specifying 316 Stainless Steel Sheet today prevents costly field failures tomorrow.

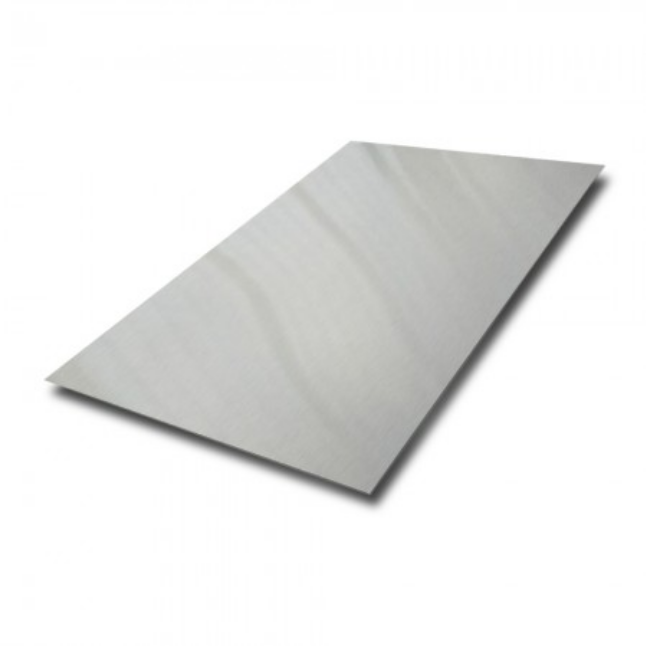

Premium 316 Stainless Steel Sheet – Mirror-like 2B finish, 4'×8' standard size

Key Features & Benefits

2–3 % Mo for superior pitting & crevice corrosion resistance in chlorides
Fully austenitic – non-magnetic, even after heavy cold work (annealed condition)
Excellent weldability with or without filler; post-weld anneal optional for most services
High creep, stress-rupture, and tensile strength at elevated temperatures (up to 850 °C)
Hygienic, non-contaminating surface – meets FDA, NSF, EU 1935/2004, USP Class VI
Wide range of finishes: 2B, BA, #4 brushed, #8 mirror, HRAP, diamond plate, perforated
100 % recyclable – contributes to LEED v4 credits

Detailed Technical Specifications

(Typical values for ASTM A240 / EN 1.4401)

Table 1 – Chemical Composition

Element	Min %	Max %
Cr	16.0	18.0
Ni	10.0	14.0
Mo	2.0	3.0
C	—	0.08
Mn	—	2.00
Si	—	1.00
P	—	0.045
S	—	0.030
N	—	0.10
Fe	Balance

Table 2 – Mechanical & Physical Properties (annealed)

Property	Value
Tensile Strength	515 MPa (75 ksi) min.
Yield Strength (0.2 % offset)	205 MPa (30 ksi) min.
Elongation in 2"	40 % min.
Hardness, HRB	95 max.
Density	8.0 g/cm³ (0.289 lb/in³)
Modulus of Elasticity	200 GPa (29 Msi)
Thermal Conductivity @ 100 °C	16.2 W/m·K
Specific Heat	500 J/kg·K

Available Sizes, Gauges & Finishes

Table 3 – 316 Stainless Steel Sheet Gauge Thickness

Gauge	Thickness (in.)	Thickness (mm)	Standard Sizes (in.)	Finish Options
24	0.024	0.61	48 × 120	2B, #4
20	0.036	0.91	48 × 144	2B, BA, #4
16	0.060	1.52	48 × 96, 48 × 120	2B, #4, #8
12	0.109	2.78	48 × 120, 60 × 144	HRAP, 2B
10	0.135	3.43	48 × 96, 60 × 144	HRAP, 2B
1/4"	0.250	6.35	48 × 96, 60 × 120	HRAP, Plasma

Custom widths 36"–60", lengths up to 288", and tight-tolerance leveling available.

Product Variants & Popular Options

316 Stainless Steel Data Sheet – Downloadable PDF with ASTM A240, EN 10204 3.1 MTR, and processing guidelines.
Who is the best supplier of 316 stainless steel sheet?
We are: ISO-9001 & ISO-14001 certified, 3 000 t stock, same-day cut, global export packaging, and on-staff metallurgists.
316 Stainless Steel Baking Sheet – Extra-low carbon 316L with #4 satin meets FDA & USP requirements for medical trays and commercial ovens.
316 Stainless Steel Sheet Gauge Thickness – Refer to Table 3; custom tolerances ±0.05 mm on request.
316 Stainless Steel Sheet Metal Screws – Stocked in 316 Phillips pan & hex-washer heads for perfect galvanic compatibility.
316 Stainless Steel Sheet Price List – Pricing driven by base (LME Ni), gauge, finish, quantity, and cutting pattern; request live quote for instant breakdown.

Applications & Industries

Marine: boat rails, hatch covers, dock cladding, prop-shaft sleeves
Architecture: coastal curtain walls, façade panels, handrails, street furniture
Pharmaceutical: autoclave liners, sterilization trays, USP-grade work surfaces
Food & Beverage: chocolate molds, baking sheets, brine tanks, cheese vats
Chemical Processing: heat-exchanger plates, pump casings, filter housing flanges
Oil & Gas: offshore helideck drip-pans, subsea instrument enclosures, flare tips
Pulp & Paper: bleach washer drums, digester screens, white-liquor piping

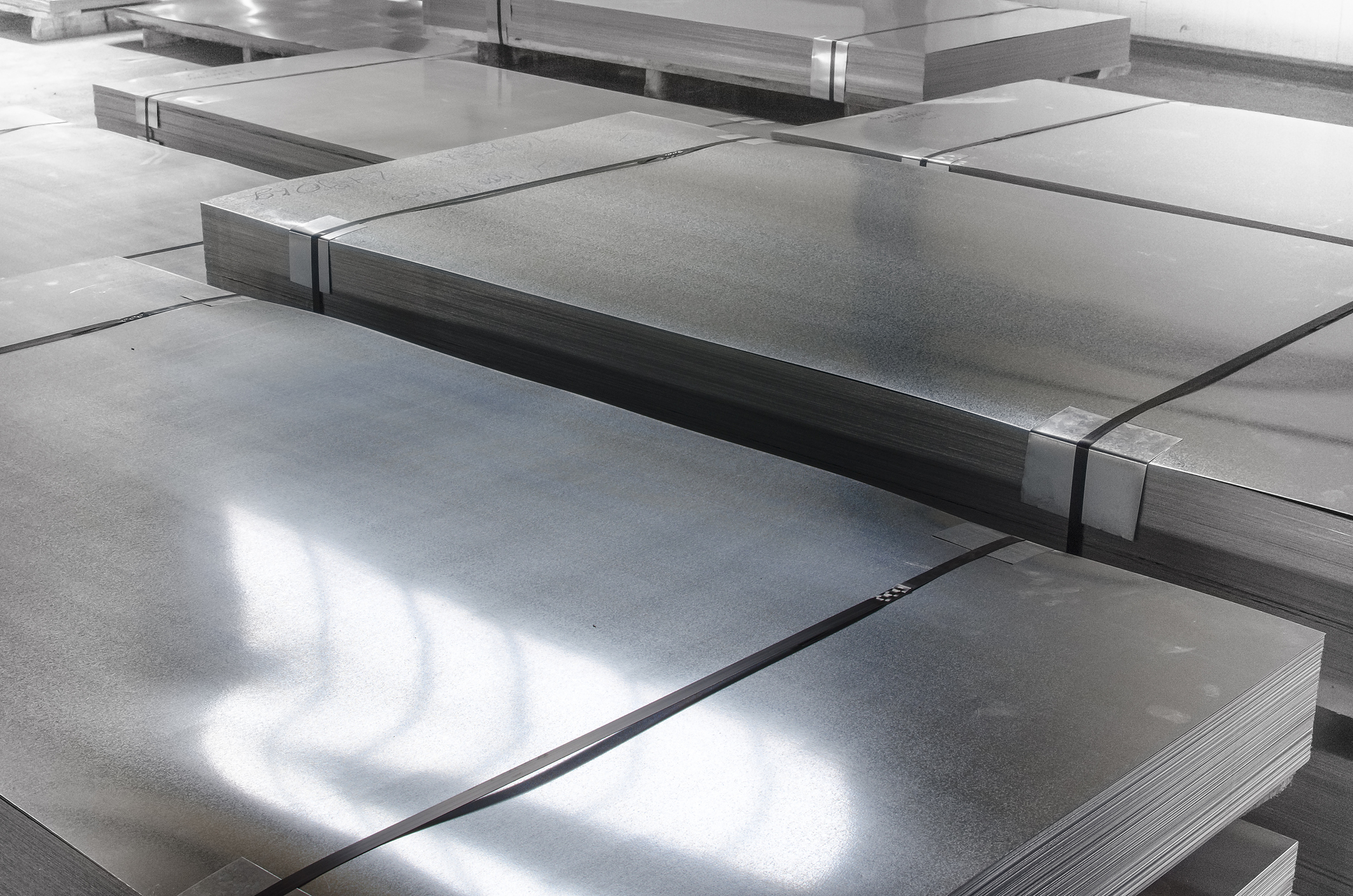

Proven superior corrosion resistance in marine and chloride environments

Why Choose Us as Your 316 Stainless Steel Sheet Supplier

3 000 metric ton inventory – 2B, BA, #4, #8, HRAP, perforated, diamond plate
Processing under one roof – water-jet, laser, plasma, shear, 8K polishing, edge-milling
Mill test certificates – EN 10204 3.1, ASTM A240 dual compliance, full traceability
No MOQ – one piece or full truck-load, cut to your CAD file overnight
Competitive 316 stainless steel sheet price list – live alloy surcharge, no hidden fees
Global logistics – export crating, fumigation-free pallets, vessel booking to any port

Large inventory – multiple gauges in stock with same-day cutting service

Comparison: 316 vs 304 vs 316L Stainless Steel

Grade	Mo Content	C Max	Typical Tensile	Best Use Case	Relative Price
304	0 %	0.08 %	515 MPa	General corrosion, food	1.0×
316	2–3 %	0.08 %	515 MPa	Marine, chloride	1.3×
316L	2–3 %	0.03 %	485 MPa	Welded assemblies, ultra-low carbon	1.35×

FAQ – 316 Stainless Steel Sheet

What is the main advantage of 316 over 304?
The 2–3 % molybdenum addition gives 316 far greater resistance to pitting and crevice corrosion in chloride environments.
How is 316L different from 316?
316L has a 0.03 % max carbon versus 0.08 %, reducing carbide precipitation during welding; strength is marginally lower.
Where can I download a 316 stainless steel data sheet?
Click the “Download PDF” button on this page for ASTM A240 values, MTR template, and processing guidelines.
What gauges are normally stocked?
Table 3 lists 24 Ga to ¼"; other thicknesses 0.5 mm–25 mm available by mill order.
Is 316 stainless steel sheet suitable for baking applications?
Yes, 316L baking sheets offer superior corrosion resistance to salty or acidic foods and meet FDA & USP standards.
Who is the best supplier of 316 stainless steel sheet?
Look for ISO-certified stockists with in-house cutting, live pricing, and mill traceability—criteria we satisfy worldwide.
What drives the price?
London Metal Exchange nickel price, thickness, finish, size tolerance, and cutting complexity; request live quote for accurate cost.

Get Your Quote Today

Ready to upgrade to marine-grade 316 Stainless Steel Sheet? Upload your cut list or CAD file and receive an instant, obligation-free quote including freight to your site. No minimum order, same-day dispatch, full mill certification.

304 Stainless Steel Plate – The World’s Most Versatile & Cost-Effective Stainless Grade

For more than 70 years, 304 Stainless Steel Plate has set the global benchmark for corrosion resistance, formability, weldability, and value. Its balanced 18 % chromium / 8 % nickel chemistry delivers excellent resistance to atmospheric and mild chemical attack, while the austenitic structure provides outstanding deep-drawing and forming capability without post-weld annealing. From food-processing tanks and architectural façades to automotive trims and 304 stainless steel license plate frame blanks, 304 stainless steel plate offers the lowest life-cycle cost of any stainless grade—making it the first choice for kitchenware manufacturers, architects, and metal fabricators worldwide.

Caption: 316 Stainless Steel Plate – Marine-Grade Corrosion Resistance for Demanding Applications

Key Features & Benefits

Excellent corrosion resistance in atmospheric, food, and mild chemical environments
Superior formability – easy to deep-draw, brake-form, or spin without cracking
Full weldability by TIG, laser, plasma; no post-weld anneal required for most services
Wide range of finishes – 2B, BA, No.4, HL, 8K mirror, and specialty 304 ba stainless steel plates
Food-grade safety – meets FDA, NSF/ANSI 61, EU 1935/2004, and 3A sanitary standards
100 % recyclable, supports LEED v4 credits
Full compliance – ASTM A240, ASME SA-240, EN 10028-7, JIS G4304

Technical Specifications

Table 1 – Chemical Composition (ASTM A240)

Element	304 %	304L %	316 %
Cr	18.0–20.0	18.0–20.0	16.0–18.0
Ni	8.0–10.5	8.0–10.5	10.0–14.0
Mo	—	—	2.0–3.0
C (304)	≤0.08	≤0.03	≤0.08
Mn	≤2.00	≤2.00	≤2.00
Fe	Balance	Balance	Balance

Table 2 – Mechanical & Physical Properties

Property	304 Plate	304L Plate
Tensile Strength	≥515 MPa (75 ksi)	≥485 MPa (70 ksi)
Yield Strength (0.2 %)	≥205 MPa (30 ksi)	≥170 MPa (25 ksi)
Elongation in 2"	≥40 %	≥40 %
Hardness HRB	≤92	≤92
Density	8.0 g/cm³ (0.289 lb/in³)	8.0 g/cm³
Thermal Expansion	17.2 µm/m·K (20–100 °C)	17.2 µm/m·K

Standard Sizes & Thickness

Thickness (mm)	Standard Sizes (mm)	Weight (kg/m²)	Finish Options
0.3–0.5	1219 × 2438	2.4–4.0	2B, BA
0.6–1.0	1219 × 3048	4.8–8.0	2B, BA, No.4
1.2–3.0	1500 × 6000	9.6–24.0	2B, No.4, HL
4.0–12.0	2000 × 6000	32–96	No.1, pickled
16–50	2000 × 6000	128–400	No.1, HRAP
60–100	2500 × 12000	480–800	No.1, forged

Custom cut-to-size and 304 stainless steel plate thickness from 0.3 mm to 100 mm available.

Product Range & Market Info

As one of the most competitive suppliers with the latest 304 stainless steel plate price, we operate a 300 000 t/year mill with five Steckel mills and eight finishing lines dedicated to 304 stainless steel plate production. Our 250 000 m² facility keeps 50 000 t of ready stock, ensuring immediate availability for global distributors. Whether you need one sheet of 304 ba stainless steel plates or a full vessel of 50 mm × 2500 mm × 12000 mm plate, our mill-direct 304 stainless steel plate price and Houston dual-stock system give you the competitive edge. Contact our export team today for the most updated quotation and downloadable 3.1 MTC.

Specialty products include food-grade 304 stainless steel plates and bowls – mirror-polished, rounded corners, and NSF-certified finishes.

Caption: 316 Stainless Steel Plate – ASTM A240 Type 316, Superior Corrosion Resistance in Marine Environments

Main Applications

Kitchen equipment – countertops, sinks, cookware, 304 stainless steel plates and bowls
Food processing – tanks, hoppers, conveyors, CIP lines
Architectural paneling – façades, curtain walls, column covers
Automotive trim – door sills, grilles, 304 stainless steel license plate frame blanks
Chemical tanks – low-pressure vessels, mixer shells
Medical trays – sterilisation baskets, instrument holders
Decorative wall cladding – No.4, HL, 304 ba stainless steel plates
Elevator cabins – mirror-polished 8K sheets

Why Choose Us – Mill-Direct + Houston Stock

Latest 304 stainless steel plate price updated daily – linked to LME Ni index
300 000 tons annual capacity – 5-day lead time for standard sizes
ISO 9001 & PED certified – EN 10204 3.1 & 3.2 MTC supplied
Same-day cutting, polishing & PVC coating – tolerances ±0.2 mm
Houston + Shanghai dual warehouses – same-day pickup or LTL shipping
Real-time stock portal – 24/7 visibility for any 304 stainless steel plate sizes

Caption: 316 Stainless Steel Plate Specification – Complete Range of Sizes and Thicknesses Available

Grade Comparison Table: 304 vs 304L vs 316 vs 201 vs 430

Grade	Cr %	Ni %	Yield MPa	Relative Cost	Best Use
304	18–20	8–10.5	≥205	1.0× (base)	General purpose
304L	18–20	8–10.5	≥170	1.02×	Welded assemblies
316	16–18	10–14	≥205	1.35×	Marine chloride
201	16–18	3.5–5.5	≥310	0.7×	Decorative
430	16–18	0	≥205	0.7×	Indoor, magnetic

FAQ – 304 Stainless Steel Plate

What is the current 304 stainless steel plate price?
Mill-direct FOB China USD 2.20–2.60/kg depending on nickel surcharge; fixed for 48 h after quotation.
How to calculate weight?
Weight (kg) = thickness (mm) × width (m) × length (m) × 7.93 kg/dm³; online calculator available.
Difference 2B vs BA?
2B is cold-rolled matte finish; BA is bright annealed mirror-like finish used for 304 ba stainless steel plates.
Food safety for 304 stainless steel plates and bowls?
Meets FDA, NSF/ANSI 61, EU 1935/2004 – certificate supplied with each batch.
Custom 304 stainless steel license plate frame sizes?
12" × 6" blanks in 0.8–1.5 mm; custom laser-cut holes and rounded corners within 24 h.
Minimum order quantity?
One sheet for stock sizes; full container (≈25 t) for mill-direct custom thickness.
Which certificates accompany the shipment?
EN 10204 3.1/3.2 MTC, ISO 9001, PED 2014/68/EU, and third-party inspection (SGS/TÜV/BV).
Do you export worldwide?
Yes, to 80+ countries including USA, Germany, India, Brazil, UAE, South Korea, and Australia.

Call-to-Action

Stop paying trader margins. Contact the most competitive 304 stainless steel plate supplier today for the latest 304 stainless steel plate price, immediate access to all 304 stainless steel plate thickness and 304 stainless steel plate sizes, and same-day cutting of 304 ba stainless steel plates or 304 stainless steel license plate frame blanks.
