410S Stainless Steel Sheet – Premium Ferritic Grade for High-Temperature & Magnetic Applications
Meta Description: 410S Stainless Steel Sheet – low carbon ferritic grade with excellent weldability and oxidation resistance up to 700°C. Download 410S stainless steel data sheet & buy from the best stainless steel 410S sheets distributor.
Introduction – Why Choose 410S Stainless Steel Sheet?
When your project demands maximum heat resistance at minimum cost, 410S Stainless Steel Sheet is the intelligent choice. This low carbon 410S stainless steel grade offers continuous service to 700 °C, excellent weldability, and full magnetic properties—making it the global standard for automotive exhaust systems, furnace liners, and architectural cladding. Unlike 410, 410S is fully ferritic, eliminating hardening issues and post-weld annealing for most applications. Whether you need 410S stainless steel sheets for radiant tubes or 410S stainless steel plate for heat shields, our mill-direct supply ensures full traceability, rapid delivery, and competitive 410S stainless steel price.
Caption: Polished 410S Stainless Steel Sheet – 2B and No.4 finish for high-temperature applicationsProduct Overview & Key Benefits
- Low carbon 410S stainless steel – superior weldability vs 410
- Continuous service to 700 °C – outperforms 430 above 600 °C
- Fully magnetic – ideal for sensors & induction heating
- Lowest stainless price – 30–40 % cheaper than 304
- Excellent formability – easy to deep-draw, brake-form, emboss
- Global supply – best stainless steel 410S sheets distributor network
Chemical Composition of 410S Stainless Steel Sheet
| Element | Min % | Max % |
|---|---|---|
| Cr | 11.5 | 14.5 |
| Mn | — | 1.00 |
| Si | — | 1.00 |
| C | — | 0.08 |
| P | — | 0.04 |
| S | — | 0.03 |
| Fe | Balance | Balance |
Low carbon ensures superior weldability and eliminates hardening issues.
Mechanical & Physical Properties of 410S Stainless Steel Sheet
| Property | Room Temp. | 600 °C | 800 °C |
|---|---|---|---|
| Yield Strength | ≥205 MPa | ≥150 MPa | ≥100 MPa |
| Tensile Strength | ≥380 MPa | ≥320 MPa | ≥220 MPa |
| Elongation | ≥22 % | ≥18 % | ≥12 % |
| Hardness HRB | ≤88 | — | — |
| Thermal Conductivity | 25 W/m·K | — | — |
| Thermal Expansion | 10.4 µm/m·K | — | — |
Data extracted from official 410S stainless steel data sheet.
Available Specifications
| Thickness (mm) | Width (mm) | Length (mm) | Finish |
|---|---|---|---|
| 0.3–3.0 | 1000–1524 | 2000–6000 | 2B, BA |
| 3.0–12.0 | 1250–2000 | 2000–12000 | No.1 |
| 12–50 | 1500–2500 | 2000–12000 | HRAP |
| 50–100 | 1500–3000 | 2000–12000 | Forged |
Custom cut-to-size available.
Key Applications of 409 Stainless Steel Sheet
- Automotive exhaust systems – pipes, manifolds, catalytic converters
- Industrial heat shields – furnace doors, radiant tubes
- White goods – magnetic appliance skins, induction-compatible panels
- Architectural cladding – 409 stainless steel chequered sheet for elevator cabins
- White goods drums – washing machine, dryer cylinders
- Magnetic whiteboards – sensor-compatible surfaces
- Cost-effective indoor panels – urban façades, column covers
410S vs 410 Stainless Steel – Key Differences
| Feature | 410S | 410 |
|---|---|---|
| Carbon | ≤0.08 % | ≤0.15 % |
| Weldability | Excellent | Fair |
| Hardenability | None | Yes |
| Max Temp | 700 °C | 815 °C |
| Price | Lower | Higher |
| Post-Weld Anneal | Optional | Required |
Choose 410S for welded high-temp parts; choose 410 for maximum hardness.
Why Choose Us as the Best Stainless Steel 410S Sheets Distributor
- Mill-direct pricing – 30–40 % cheaper than 310S
- 500 000 t annual ferritic capacity – 5-day lead time
- ISO 9001 & PED certified – EN 10204 3.1 MTC supplied
- In-house brushing & embossing – Ra ≤0.2 μm mirror finish
- Same-day cutting & protective film – tolerances ±0.2 mm
- Real-time stock portal – 24/7 visibility for any thickness

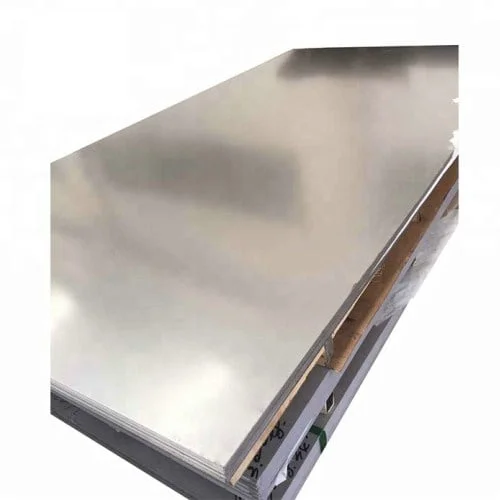

Caption: 410S Stainless Steel Sheet – Production Line, Ready for High-Temperature ApplicationsAvailability and Pricing
As a leading 409 stainless steel sheet company and trusted 409 stainless steel sheet supplier, we maintain massive ready stock in Shanghai, Houston, and Rotterdam. Whether you need one coil of 0.5 mm × 1219 mm or a full plate of 20 mm × 2500 mm, our 409 stainless steel sheet for sale is available at competitive factory-direct pricing. Contact our export team for:
- 409 stainless steel sheet material certificates
- 409 stainless steel sheet properties datasheets
- 409 stainless steel sheet supplier warehouse locations
- Same-day dispatch to UK, EU, GCC, ASEAN, and Americas
Frequently Asked Questions (FAQ)
Q1: What is the maximum service temperature for 409 Stainless Steel Sheet?
A: 815 °C continuous, 900 °C intermittent in clean air.
Q2: Is 409 Stainless Steel Sheet magnetic?
A: Fully ferritic – ideal for induction heating and sensor applications.
Q3: How does the price compare to 430?
A: 10–15 % cheaper than equivalent 430 finish.
Q4: Can I get a mirror finish?
A: Yes – BA or 8K mirror up to Ra ≤0.2 μm.
Q5: Is welding difficult?
A: Use 309 or 409 filler; post-weld anneal optional for most services.
Q6: What embossed patterns are available?
A: Diamond, linen, ripple, custom logos – 409 stainless steel chequered sheet equivalent.
Q7: What is the minimum order?
A: One sheet for stock sizes; full container (≈25 t) for mill-direct custom thickness.
Q8: Do you export worldwide?
A: Yes – to 80+ countries including UK, Germany, India, UAE, South Korea, and Australia.
Conclusion & Call-to-Action
Stop paying nickel premiums. Contact the most trusted 409 stainless steel sheet supplier today for the latest price, immediate access to massive 409 stainless steel sheet for sale stock, and same-day cutting of any thickness or finish.

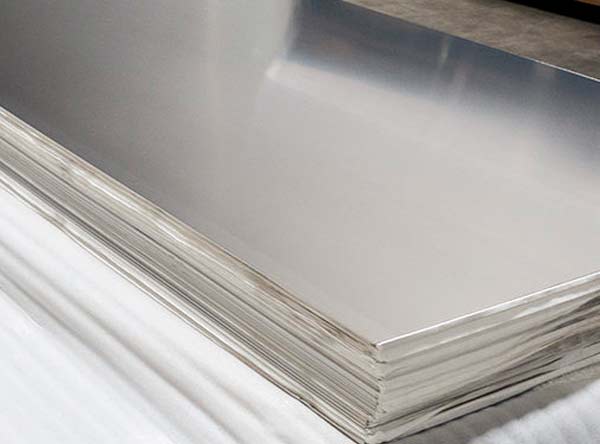

Caption: Massive Stock – 410S Stainless Steel Sheet for Sale from Leading 410S Stainless Steel Sheet Company, Mill-Direct Prices Worldwide
