303 Stainless Steel – The Ultimate Free-Machining Austenitic Grade for High-Speed, High-Volume Precision Parts
303 Stainless Steel is the first choice when shops need to combine stainless corrosion resistance with record-breaking machinability. By adding 0.15–0.35 % sulfur or selenium to a 17-19 % Cr, 8-10 % Ni austenitic matrix, UNS S30300 produces discrete sulfide inclusions that act as chip-breakers and lubrication sites, giving up to 70 % faster cutting speeds and dramatically longer tool life compared with standard 304. The grade retains the non-magnetic, tough austenitic structure that engineers expect, while its low carbon (≤0.15 %) and controlled chemistry deliver good polishability, moderate corrosion resistance and reliable weldability for non-critical joints. From high-volume screw-machine fittings to precision aerospace fasteners, 303 Stainless Steel slashes cycle times, reduces tool costs and still meets the hygienic, aesthetic and strength requirements of modern industry.
Key Features & Benefits – Why 303 Stainless Steel Outruns 304 on Every Chip
Superior Machinability That Cuts Costs
- Rated 90–100 % on AISI machinability index versus 50 % for 304—surface speeds can exceed 120 m/min on CNC lathes.
- Built-in sulfide lubrication lowers cutting forces 20 %, extending carbide insert life 3× and reducing downtime for tool changes.
Good Mechanical & Physical Properties
- Minimum tensile 515 MPa and yield 205 MPa—strong enough for shafts, valves and pump spindles without heat treatment.
- 40 % elongation enables cold-heading of small screws and rivets without cracking.
Moderate Corrosion Resistance
- 17 % Cr passive film withstands rural, mild urban and most indoor atmospheres; ASTM B117 salt-spray > 96 h with <5 % rust area.
- Suitable for mildly acidic foods, beverages and cleaning chemicals—passes EU 10 % citric acid migration limits.
Non-Magnetic & Stable
- Relative permeability < 1.02 in annealed condition—ideal for sensor housings, medical instruments and electronic hardware.
Polishable & Aesthetic
- High sulfer content can be chemically removed during final polishing, achieving mirror finishes < 0.1 µm Ra for decorative trim.
Weldable With Precautions
- Autogenous TIG possible on thin sections; for thicker or critical joints use 308L or 312 filler to offset hot-cracking tendency from sulfur.
Technical Specifications
| Property | Value | Standard |
|---|---|---|
| Density | 8.0 g/cm³ | ASTM A582 |
| Melting Point | 1 400 – 1 420 °C | ASTM A240 |
| Tensile Strength | ≥ 515 MPa | ASTM A370 |
| Yield Strength (0.2 %) | ≥ 205 MPa | ASTM A370 |
| Elongation in 50 mm | ≥ 40 % | ASTM A370 |
| Hardness, HRB | ≤ 95 | ASTM E18 |
| Machinability Rating | 90–100 % | AISI B1112 baseline |
Values comply with UNS S30300, AISI 303, EN 1.4305 and ASTM A582/A484, ensuring worldwide interchangeability.
Applications & Use Cases – Where 303 Stainless Steel Turns Swarf into Savings
Precision Machined Components
High-speed screw machines produce 50 000-piece lots of dowel pins, threaded inserts and spacer collars in 303 Stainless Steel with cycle times under 6 seconds. A U.S. automotive supplier cut production cost 35 % versus 304 while maintaining dimensional tolerance ±0.025 mm.
Fasteners, Screws & Bolts
Cold-headed hex bolts and socket-cap screws benefit from 303’s ductility for heading and subsequent sulfur-enhanced machining of threads. Non-magnetic properties prevent interference with sensitive electronic assemblies.
Bushings, Shafts & Pump Spindles
Self-lubricating sulfides allow dry-running in low-load bearings; 303 Stainless Steel shafts operate in chemical dosing pumps handling pH 4–10 brines without pitting.

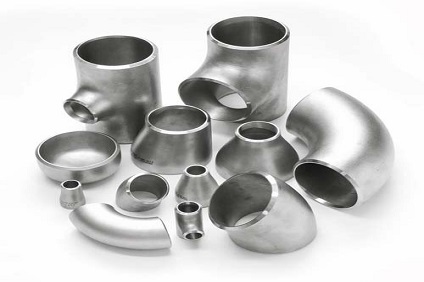

Valves, Fittings & Hardware
Bar-turned barb fittings and pneumatic valve bodies achieve 0.8 µm surface finish straight from the lathe, eliminating secondary grinding. ISO 7/1 threads can be rolled after machining to increase fatigue strength 40 %.
Gears, Splines & Power Transmission
Precision hobbing of 303 Stainless Steel pinions yields quieter meshing than equivalent 12L14 carbon steel, while corrosion resistance suits marine winch drives.
Medical & Dental Instruments
Polished 303 handles for scalpels and forceps meet ASTM F899 chemistry; non-magnetic character prevents MRI artefacts.
Aerospace Fasteners & Consumables
303 Stainless Steel lock-nuts and clevis pins withstand atmospheric corrosion during outdoor storage yet machine at high speed for tight delivery schedules.
Comparison with Other Grades – 303 vs 304, 316, 416, 430
| Grade | Machinability % | Corrosion | S/Se % | Relative Cost | Typical Uses |
|---|---|---|---|---|---|
| 303 | 100 | Medium | 0.30 | Medium | High-speed fittings |
| 304 | 50 | High | 0.03 | Medium | Welded tanks |
| 316 | 50 | Very High | 0.03 | High | Marine hardware |
| 416 | 110 | Low | 0.30 | Low | Pump shafts |
| 430 | 60 | Medium | 0.03 | Low | Dishwasher panels |
Pros: 303 Stainless Steel offers the best combination of free-cutting speed and austenitic corrosion resistance.
Cons: Not suitable for marine immersion or chloride bleach environments; for such cases upgrade to 316L.
Manufacturing Process & Quality Assurance
We melt 303 Stainless Steel in an electric-arc furnace, argon-oxygen decarburise to ≤ 0.15 % C, then add 0.25 % sulfur or selenium for machinability. Continuous casting into 200 mm billets is followed by hot rolling and cold drawing to final size. Solution annealing at 1 010 °C and rapid cooling dissolves sulfides uniformly, while pickling in HNO₃/HF removes scale. Centerless grinding and polishing achieve h9 tolerance and 0.4 µm Ra finish. Every batch is certified to ASTM A582/A484, ISO 9001 and optional AS/EN 9100 for aerospace; tests include ICP chemistry, machinability turning test (100 m/min, 0.25 mm/rev), ASTM A262 Practice A intergranular corrosion and full mechanical MTR. Third-party inspection certificates accompany each shipment for PPAP submission.
Maintenance & Care Tips
Clean 303 Stainless Steel with mild detergent and warm water; avoid steel brushes that can embed free iron. For medical or food zones, finish with 2 % citric acid passivation to maximise corrosion resistance. Store bar stock under cover, vertically separated by plastic to prevent carbon-steel contamination that could initiate localised rust. Do not expose to hydrochloric or ferric-chloride solutions; if unavoidable, specify 316L instead.
Frequently Asked Questions
Q: Is 303 Stainless Steel food-grade?
A: Yes—its 17 % Cr meets FDA 21 CFR for neutral-pH food contact; however, for high-chloride sauces or repeated CIP cycles specify 316L.
Q: Why is 303 better for machining than 304?
A: Added sulfur forms manganese-sulfide inclusions that act as chip breakers and lubrication pockets, raising machinability from 50 % to 100 % on the AISI scale.
Q: Can 303 Stainless Steel be welded?
A: Thin sections can be TIG-welded with 308L filler and low heat input; thick or critical joints should use 304 or 304L to avoid hot-cracking risk from sulfur.
Ready to turn chips into profit with the fastest austenitic grade? Contact us today for custom quotes on 303 Stainless Steel bar, rod, hex or precision-machined blanks—mill-direct pricing, global delivery and full metallurgical support included.
