410 Stainless Steel Pipe – Heat-Treatable Martensitic Strength for Oil & Gas, Valves, Pump Shafts & High-Pressure Systems
Introduction – Why 410 Stainless Steel Pipe is the Go-To Martensitic Grade for Aggressive Service
When downstream pressure tops 10,000 psi and the Christmas tree on a remote offshore well demands a magnetic, hardenable alloy that will not buckle under torsional load, engineers specify 410 stainless steel pipe. This martensitic champion combines the lowest alloy cost in the 400-series with the unique ability to quench & temper to 38-45 HRC, giving oil & gas contractors a 410 stainless steel seamless pipe that rivals 17-4PH strength at a fraction of the price. From North Sea sub-surface safety valves to Permian Basin frac pumps, a properly heat-treated martensitic 410 stainless steel pipe resists erosion, galling and mild CO₂ environments while staying fully magnetic for NDT inspection.
Unlike austenitic 304/316, 410 stainless steel pipe hardness can be dialed from 22 HRC (annealed) to 45 HRC (quenched & tempered), delivering tensile strength up to 1,000 MPa—perfect for pump shafts, hydraulic cylinders, turbine blades and high-pressure bolts turned from ASTM A276 round bar. Budget-conscious EPCs also profit from our competitive 410 stainless steel pipe price, tight mill integration and EN 10204 3.1/3.2 certification with NACE MR0175. Whether you need schedule 40 410 stainless steel pipe or XXS seamless line pipe, we stock 10,000+ tons, ready for same-day shipment. Read the data below, download the 410 stainless steel pipe data sheet, and discover why we are the best 410 stainless steel pipe distributor on the planet.
Product Overview & Unbeatable Advantages
- Heat-treatable martensitic structure – gain 2-3× strength by quenching & tempering on site
- Fully magnetic – simplifies MPI inspection in the oilfield
- Lower Ni & Mo – 30-40 % cheaper than 316L, 20 % cheaper than 420
- Good erosion & cavitation resistance – outlasts carbon steel 5× in steam lines
- Excellent machinability – 70 % rating versus 45 % for 316, ideal for turned valve stems
- Wide size spectrum – 1/8″–24″ NPS, Sch 10S–XXS, seamless & welded
- Global certifications – ASTM A312, A268, A790, API 5L, PED, NACE, ISO 9001
Our 410 stainless steel pipe suppliers network stretches from U.S. Gulf Coast stock hubs to Rotterdam, Singapore and Dubai, guaranteeing the fastest 410 stainless steel pipe price quotation and shortest lead time. Every single quenched and tempered 410 pipe is ultrasonically tested, hydro-tested to 1.5× design pressure, and shipped with EN 10204 3.1 or 3.2 as your project demands.
Chemical Composition Table (UNS S41000)
| Element | Min % | Max % |
|---|---|---|
| Cr | 11.5 | 13.5 |
| C | 0.08 | 0.15 |
| Mn | – | 1.00 |
| Si | – | 1.00 |
| P | – | 0.040 |
| S | – | 0.030 |
| Ni | – | 0.75 |
| Fe | Balance | – |
Mechanical Properties Table – Annealed vs Quenched & Tempered 410 Stainless Steel Pipe
| Condition | UTS (MPa) | YS 0.2 % (MPa) | Elong. % | Hardness HRC | Charpy J @ 20 °C |
|---|---|---|---|---|---|
| Annealed | 480 | 275 | 25 | 22 | 90 |
| Q&T 600 °C | 1,000 | 820 | 15 | 45 | 35 |
| Q&T 750 °C | 860 | 690 | 18 | 38 | 55 |
Physical Properties Table
| Property | Value |
|---|---|
| Density | 7.75 g/cm³ |
| Thermal conductivity @ 100 °C | 24.9 W/m·K |
| Electrical resistivity | 57 µΩ·cm |
| Magnetic | YES – fully ferromagnetic |
| Specific heat | 460 J/kg·K |
| Modulus of elasticity | 200 GPa |
410 vs 410S vs 304 vs 316 vs 420 Pipe Comparison
| Grade | Hardness HRC | Weldability | Corrosion | Cost Index | Max Service °C |
|---|---|---|---|---|---|
| 410 stainless steel pipe | 45 (Q&T) | Fair (pre-heat) | Mild | 70 | 650 |
| 410S pipe | 20 | Good | Mild | 72 | 650 |
| 304 pipe | 18 | Excellent | Good | 100 | 870 |
| 316 pipe | 18 | Excellent | Excellent | 130 | 870 |
| 420 pipe | 50 | Poor | Mild | 85 | 600 |
Available Types & Specifications Table
| Type | Seamless / Welded | Size Range | Wall Thickness | Standards | Surface |
|---|---|---|---|---|---|
| 410 stainless steel seamless pipe | Seamless | 1/8″–24″ NPS | Sch 10S–XXS | ASTM A312, A268, A790, API 5L | Pickled, polished, AP |
| 410 stainless steel welded pipe | Welded | 1/2″–24″ NPS | Sch 5S–160 | ASTM A358, A814, API 5L | Pickled, polished, AP |
Heat Treatment Guide for 410 Stainless Steel Pipe
- Annealing: 750–850 °C, furnace cool to 600 °C, then air cool → softest state for machining.
- Hardening: 950–1050 °C, oil or air quench → full martensite, ~45 HRC.
- Tempering:
- 600 °C → 45 HRC, highest strength, moderate toughness
- 750 °C → 38 HRC, optimal impact resistance for valve stems
All treatments must be performed after welding to restore 410 stainless steel heat treatment pipe properties.
Major Applications
- Oil & gas wellhead equipment & Christmas trees
- High-pressure valve stems, gate & ball valve bodies
- Centrifugal & reciprocating pump shafts
- Steam turbine blades & shrouds
- Hydraulic cylinders & telescopic booms
- Petrochemical crackers & high-temperature bolts
- Mining screens & ore chutes
- Marine propeller shafts & rudders

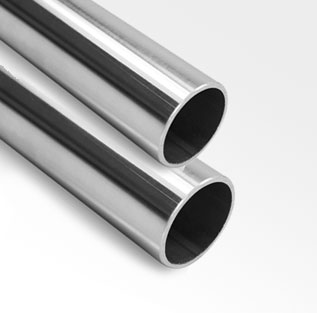

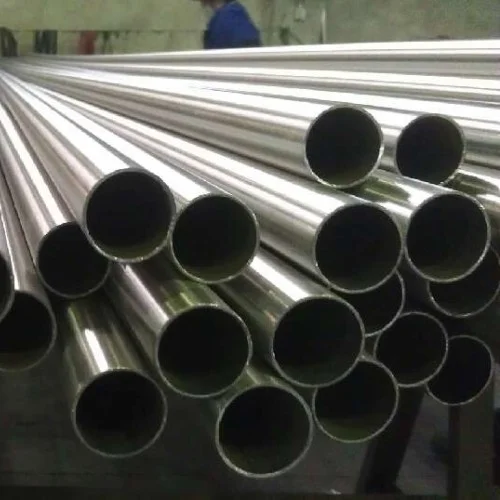

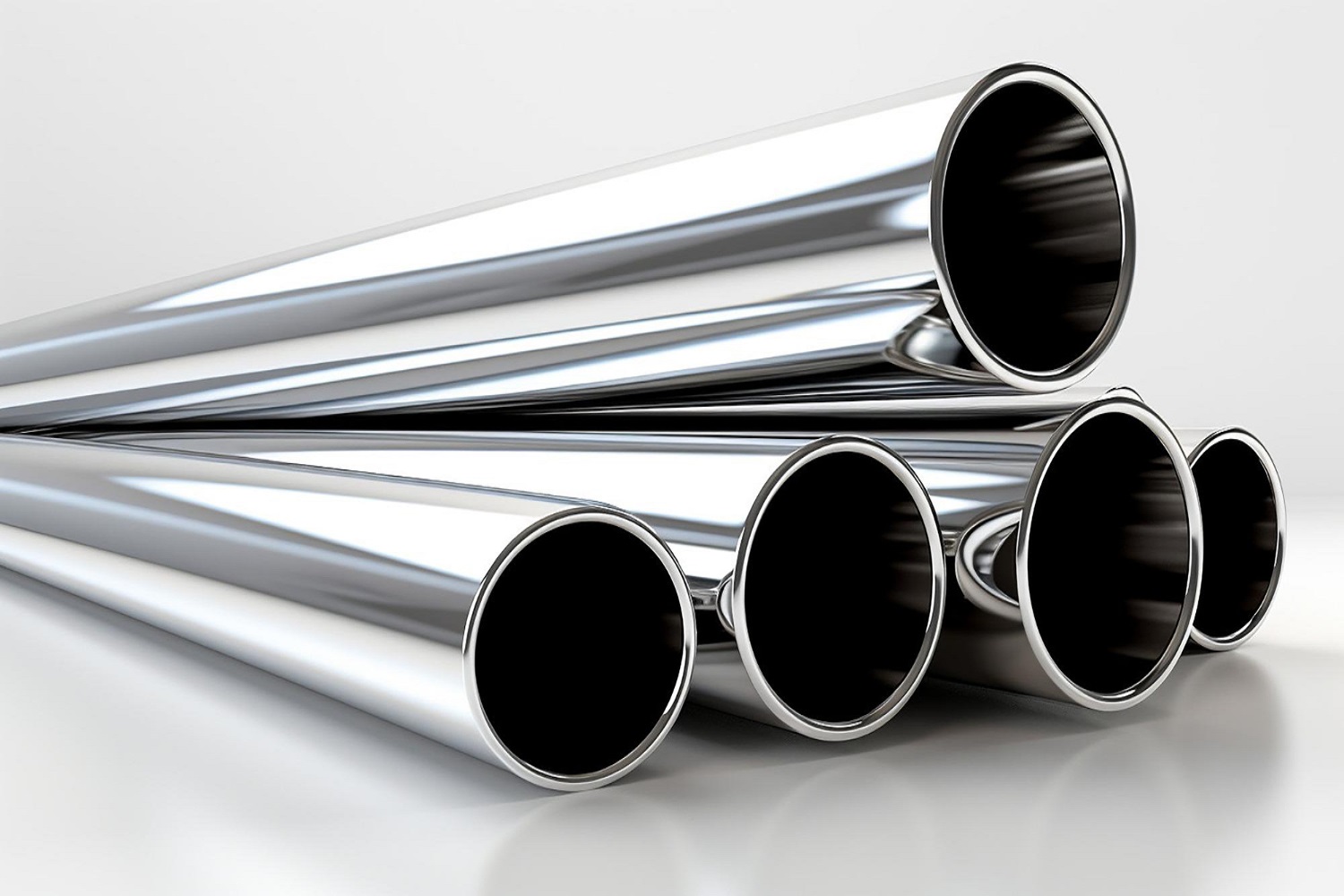

Caption: Polished quenched & tempered 410 stainless steel seamless pipes bundled for export
Caption: Professional infographic 410 stainless steel pipe data sheet + hardness vs tempering temperature curve
Caption: Real installation collage – 410 pipes used in oilfield Christmas trees, pump shafts, high-pressure valve bodies, and turbine componentsWhy We Are the Best 410 Stainless Steel Pipe Distributor
- 10,000+ tons stock of 410 stainless steel seamless pipe & welded pipe ready in Houston, Rotterdam, Singapore, Dubai, Mumbai
- Direct mill sourcing = lowest 410 stainless steel pipe price in any currency
- In-house vacuum heat-treatment & continuous pickling line – quenched and tempered 410 pipe on demand
- 100 % ultrasonic + 100 % hydrostatic testing; beveling & threading up to 12″ NPS
- Full EN 10204 3.1/3.2, NACE MR0175, ISO 9001, PED, AD 2000, CRN Canada
- Export packaging to Angola, Brazil, Kuwait, Australia – fastest vessel booking worldwide
- 24/7 live chat, WhatsApp, WeChat, phone, email – quotes within 2 hours
We are the global No.1 410 stainless steel pipe supplier—no middleman, no delays.
Packaging & Quality Standards
Each 410 stainless steel magnetic pipe is:
- End-capped with heavy plastic protectors
- Bundled with steel strips ≤2 t tension, 3× bundle tags
- Wrapped in 20 µm polyfilm + 7-ply wooden boxes for OD ≤6″
- Marked with heat number, size, standard, CE & NR stamp
- Palletized for easy forklift handling; complies with ISPM-15
FAQ Section
Q1: Is 410 stainless steel pipe magnetic?
A1: Yes, 410 is fully martensitic and ferromagnetic—ideal for magnetic-particle inspection.
Q2: Can 410 pipe be hardened after welding?
A2: Absolutely; solution anneal at 950 °C, quench, then temper 600–750 °C to restore hardness.
Q3: Difference between 410 and 410S pipe?
A3: 410S has <0.08 % C for better weldability but cannot be hardened above 22 HRC.
Q4: Maximum hardness achievable?
A4: 45–47 HRC after oil quench from 1000 °C + temper at 600 °C.
Q5: Recommended welding method?
A5: SMAW with AWS E410-15/16, 250 °C pre-heat, post-weld Q&T mandatory.
Q6: Corrosion resistance in seawater?
A6: Fair; use cathodic protection or cladding for long-term immersion.
Q7: NACE compliance?
A7: Yes, Q&T condition ≤22 HRC meets NACE MR0175 for sour service.
Q8: Minimum order quantity?
A8: 50 kg (one piece) for stocked sizes; mill orders from 2 tons.
Q9: Lead time for Sch 80 seamless 410 pipe?
A9: 3 days ex-stock; 3–4 weeks for non-stock 14″+ Q&T.
Q10: Can you supply ASTM A276 410 stainless steel round bar turned pipe?
A10: Yes, we machine bar to pipe dimensions 50–300 mm OD, h8 tolerance.
Conclusion – Request Your 410 Stainless Steel Pipe Quote Now
Stop paying premium prices for over-specified alloys. Our 410 stainless steel pipe gives you heat-treatable strength up to 1000 MPa, full magnetism, and outstanding cost efficiency for oil & gas, valves, pump shafts, and power-plant steam lines. As the best 410 stainless steel pipe distributor on earth, we hold 10,000+ tons, certify to NACE, and ship worldwide in days—not months.
Email, WhatsApp, WeChat, phone, or live chat 24/7. Send your specs now and receive a formal 410 stainless steel pipe price quotation within 2 hours. Your next project deserves the No.1 410 stainless steel pipe supplier—let's get it moving today!
